Product Details:
|
| Product Name: | Agriculture Solar Water Pump | Solar Panel: | 350P/39V |
|---|---|---|---|
| Ambient Water Temperature:: | 1 - 35 ℃ | Pump Enclosure Class:: | IP68 |
| Adapting Well Dia.:: | 125 Mm | Water Head:: | 40 - 1 M |
| Daily Water Flow:: | 9 - 23 M³ | Certificate:: | CE, ROHS |
| Output Current:: | 10A | Output Type:: | DC/AC Inverters |
| High Light: | Solar Energy High Pressure Water Pump,Heavy Duty High Pressure Water Pump,Stainless Steel High Pressure Water Pump |
||

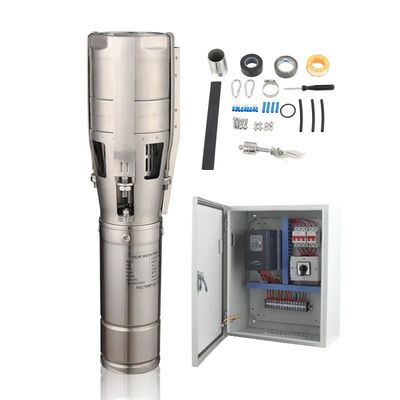

Solar Agriculture Powered Water Pump High Pressure 12v Irrigation
Solar Water Pump System: As a professional manufacturer of complete solar
power system and solar water pump system ,Anern offer practical, professional
and affrodable AC and DC solar powered water pumping system to residential

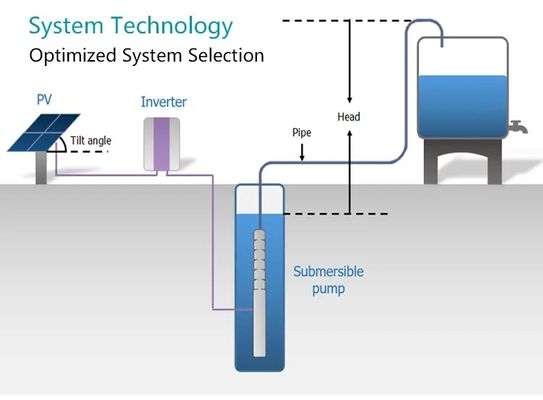

and commercial application. Anern solar pumping system mainly consists of
solar panels, the specialized pump inverter and water pump.
|
Product Specification
|
|||||||
|
Solar Pump
|
Recommended Solar Array Design
|
Water
|
Daily Water
|
Outlet
|
Recommended
|
||
| Model |
Solar Panel
|
Series Parrallel
|
Power
|
Head | Supply | Dia. | MPP Voltage |
|
AN400HS
|
350P/39V
|
1pcs×1string
|
350W
|
40 - 1m
|
6 - 22m³
|
1"
|
≥20VDC
|
|
AN600HS
|
350P/39V
|
3pcs×1string
|
1050W
|
80-18m
|
2-18m³
|
1"
|
60-120VDC
|
|
AN41200C033
|
350P/39V
|
4pcs×1string
|
1400W
|
43-22m
|
18-33m³
|
1"1 / 2
|
120-160VDC
|
|
AN41800C076
|
350P/39V
|
4pcs×2string
|
2800W
|
34-16m
|
34-76m³
|
2"
|
120-160VDC
|
|
AN42K2040
|
350P/39V
|
15pcs×1string
|
5250W
|
123-82m
|
23-40m³
|
1"1 / 2
|
500-600VDC
|
|
AN43K0020
|
200P/35V
|
15pcs×2string
|
6300W
|
235-149m
|
13-23m³
|
1"1/4
|
500-700VDC
|
|
AN45K5070
|
350P/39V
|
15pcs×2string
|
10500W
|
175-117m
|
40-70m³
|
2"
|
500-700VDC
|
|
AN65K5160
|
350P/39V
|
15pcs×2string
|
10500W
|
79-43m
|
80-160m³
|
2"1/2
|
500-600VDC
|
|
AN47K5070
|
350P/39V
|
16pcs×3string
|
16800W
|
217-143m
|
40-70m³
|
2"
|
500-600VDC
|
|
AN69K2260
|
350P/39V
|
15pcs×4string
|
21000W
|
84-53m
|
160-260m³
|
3"
|
500-600VDC
|
|
AN615K260
|
350P/39V
|
15pcs×6string
|
31500W
|
134-85m
|
160-260m³
|
3"
|
500-600VDC
|
|
AN626K180
|
350P/39V
|
15pcs×10string
|
52500W
|
362-204m
|
100-180m³
|
3"
|
500-600VDC
|
|
AN837K700
|
350P/39V
|
15pcs×14string
|
73500W
|
139-89m
|
450-700m³
|
5"
|
500-600VDC
|
