Product Details:
|
| Product Name: | Agriculture Solar Water Pump | Solar Panel: | 350P/39V |
|---|---|---|---|
| Ambient Water Temperature:: | 1 - 35 ℃ | Pump Enclosure Class:: | IP68 |
| Adapting Well Dia.:: | 125 Mm | Water Head:: | 40 - 1 M |
| Daily Water Flow:: | 9 - 23 M³ | Certificate:: | CE, ROHS |
| Output Current:: | 10A | Output Type:: | DC/AC Inverters |
| Highlight: | SGS 3hp High Pressure Irrigation Pumps,SGS Solar Irrigation Pump,Cost Effective Solar Irrigation Pump |
||
Solar Agriculture Powered Water Pump 3hp Solar Submersible Water Pump Solar Pump Controller

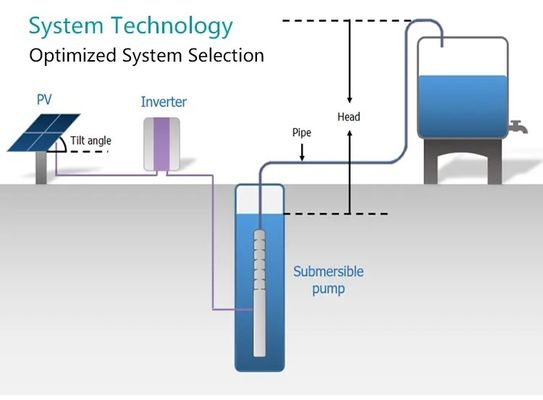

Solar Water Pump System: As a professional manufacturer of complete solar
power system and solar water pump system ,Anern offer practical, professional
and affrodable AC and DC solar powered water pumping system to residential
and commercial application. Anern solar pumping system mainly consists of
solar panels, the specialized pump inverter and water pump.
|
Product Specification
|
|||||||
|
Solar Pump
|
Recommended Solar Array Design
|
Water
|
Daily Water
|
Outlet
|
Recommended
|
||
| Model |
Solar Panel
|
Series Parrallel
|
Power
|
Head | Supply | Dia. | MPP Voltage |
|
AN400HS
|
350P/39V
|
1pcs×1string
|
350W
|
40 - 1m
|
6 - 22m³
|
1"
|
≥20VDC
|
|
AN600HS
|
350P/39V
|
3pcs×1string
|
1050W
|
80-18m
|
2-18m³
|
1"
|
60-120VDC
|
|
AN41200C033
|
350P/39V
|
4pcs×1string
|
1400W
|
43-22m
|
18-33m³
|
1"1 / 2
|
120-160VDC
|
|
AN41800C076
|
350P/39V
|
4pcs×2string
|
2800W
|
34-16m
|
34-76m³
|
2"
|
120-160VDC
|
|
AN42K2040
|
350P/39V
|
15pcs×1string
|
5250W
|
123-82m
|
23-40m³
|
1"1 / 2
|
500-600VDC
|
|
AN43K0020
|
200P/35V
|
15pcs×2string
|
6300W
|
235-149m
|
13-23m³
|
1"1/4
|
500-700VDC
|
|
AN45K5070
|
350P/39V
|
15pcs×2string
|
10500W
|
175-117m
|
40-70m³
|
2"
|
500-700VDC
|
|
AN65K5160
|
350P/39V
|
15pcs×2string
|
10500W
|
79-43m
|
80-160m³
|
2"1/2
|
500-600VDC
|
|
AN47K5070
|
350P/39V
|
16pcs×3string
|
16800W
|
217-143m
|
40-70m³
|
2"
|
500-600VDC
|
|
AN69K2260
|
350P/39V
|
15pcs×4string
|
21000W
|
84-53m
|
160-260m³
|
3"
|
500-600VDC
|
|
AN615K260
|
350P/39V
|
15pcs×6string
|
31500W
|
134-85m
|
160-260m³
|
3"
|
500-600VDC
|
|
AN626K180
|
350P/39V
|
15pcs×10string
|
52500W
|
362-204m
|
100-180m³
|
3"
|
500-600VDC
|
|
AN837K700
|
350P/39V
|
15pcs×14string
|
73500W
|
139-89m
|
450-700m³
|
5"
|
500-600VDC
|
