Product Details:
|
| Product Name:: | Farm Wheel Tractor | By Wheel:: | 4WD |
|---|---|---|---|
| Rated Power (HP):: | 70HP | Drive Type:: | Gear Drive 8+2 |
| Core Components:: | Motor, Pressure Vessel, Gearbox, Engine, PLC, Bearing | Applicable: | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Construction Works , Food & Beverage Shops |
| Color: | Blue, Red, Customized | Packing: | Wooden Case/Wooden Frame |
| High Light: | 70HP Front Loader Trailer,70HP Four Wheel Tractor,Agricultural Machinery Parts Front Loader Trailer |
||

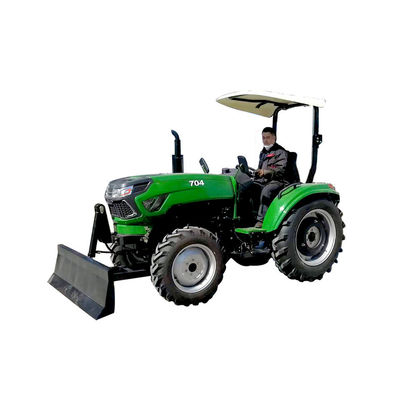

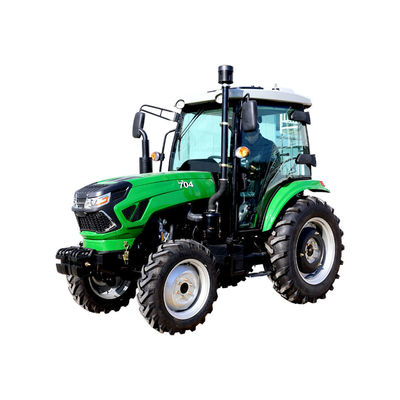

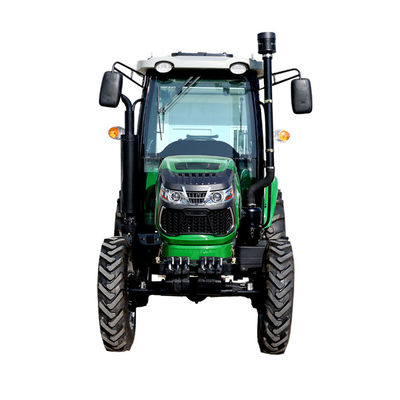

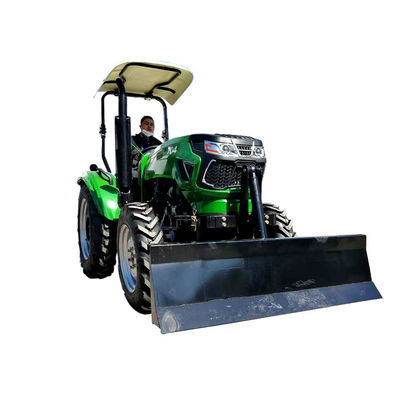

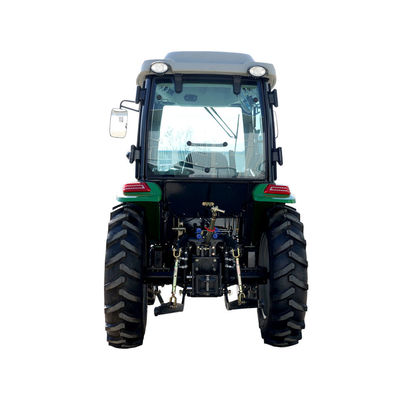

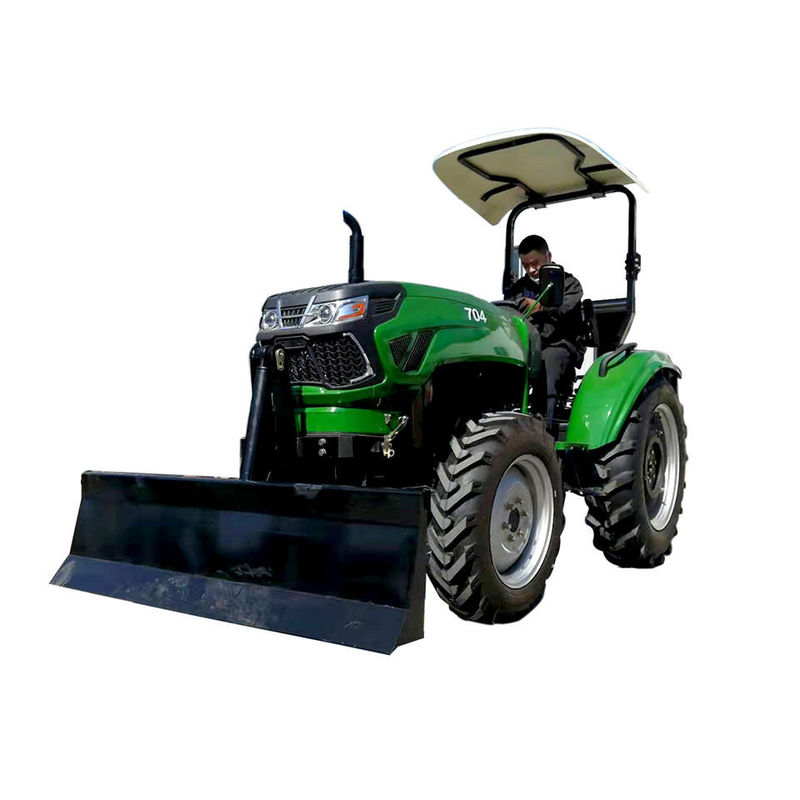

1. TE series tractor is designed for multiple light works, such as farming, transportation etc.
2. Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency
and fuel efficiency, low maintenance cost and good working performance.
3. Using central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R gearbox with easy operation and convenient maintenance;
5. Optional single/double action clutches for different needs and operation; Optional
Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
6. Hydraulic power steering( 4WD) makes it easy to control and reduce the labor strength of operator.
|
Product Parameter
|
|||
|
Model
|
704E
|
704B
|
|
|
Machine parameters
|
Type
|
4×4
|
4×4
|
|
Rated Traction( KN)
|
12
|
17
|
|
|
PTO Max Power (KW)
|
43.8
|
50
|
|
|
Dimensions(mm)
|
3560×1650×2450
|
3750×1820×2670
|
|
|
Wheelbase(mm)
|
1965
|
2050
|
|
|
Track(mm)
|
Front wheel(mm)
|
1150
|
1280
|
|
Rear wheel(mm)
|
1200-1360
|
1100-1390
|
|
|
Ground clearance(mm)
|
Minimum ground clearance(mm)
|
330
|
330
|
|
Minimum turning cricle radius
|
Use unilateral braking
|
2.85±0.20
|
3.8±0.30
|
|
Not unilateral braking
|
3.15±0.30
|
4.3±0.30
|
|
|
Minimum use quality
|
1880
|
2950
|
|
|
Gearbox
|
8F+8R Shuttle Shift
|
12F+12R Shuttle Shift
|
|
|
Steering System
|
Hydraulic steering gear
|
||
|
Drive Train
|
Clutch
|
Dual stage clutch
|
Double acting clutch
|
|
Working equipment
|
Maximum lifting force at 610mm(KN)
|
10.85
|
≥14.2
|
|
Suspension mechanism
|
Three-piont suspension type 1 or 2
|
Three-piont suspension type 1
|
|
|
PTO shaft
|
PTO Spedd(r/min)
|
540/760(option: 540/1000)
|
540/760(option: 540/1000)
|
|
Tire
|
Front wheel specifications
|
6.5-16/7.5-16/7.5-20
|
8.3-20/8.3-24/9.5-24
|
|
Rear wheel specifications
|
11.2-24/12.4-24/12.4-28
|
12.4-28/11-32/14.9-30
|
|
|
Engine
|
Type
|
Inline, 4 stroke, Water cooled
|
Inline, 4 stroke, Water cooled
|
|
Cylinder
|
4
|
4
|
|
|
Optional
|
Cabin
|
AC/Heater
|
|
|
Roll bar
|
|||
|
|
Canopy
|
|
|
|
Perfusion volume
|
Radiater(L)
|
15
|
12
|
|
Fuel tank(L)
|
50
|
64
|
|
|
Engine oil pan(L)
|
5
|
7
|
|
|
Driveline oil (L)
|
20
|
28
|
|
|
Lifter(L)
|
9.5
|
11
|
|
|
Hydraulic steering oil (L)
|
0.7
|
0.8
|
|
|
Steering system oil (L)
|
15
|
20
|
|
|
This parameter table is for reference only, everything is based on actual products
|
|||
1. who are we?
We are based in Hubei, China, start from 2016,sell to Domestic Market(30.00%),
Africa(25.00%),Southeast Asia(18.00%),South America(15.00%),South Asia(7.00%),
Mid East(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tractors,Tricycle,Truck,Farming Implements
4. why should you buy from us not from other suppliers?
We are professional manufacture.Our company now has over 600 employees, over 600 modern production equipment and multiple production lines, involving final assembly, electrophoretic painting, rear axle, carriage molding, welding, casting, machining, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Contact Person: Mr. Thomas
Tel: +86-13697356100
